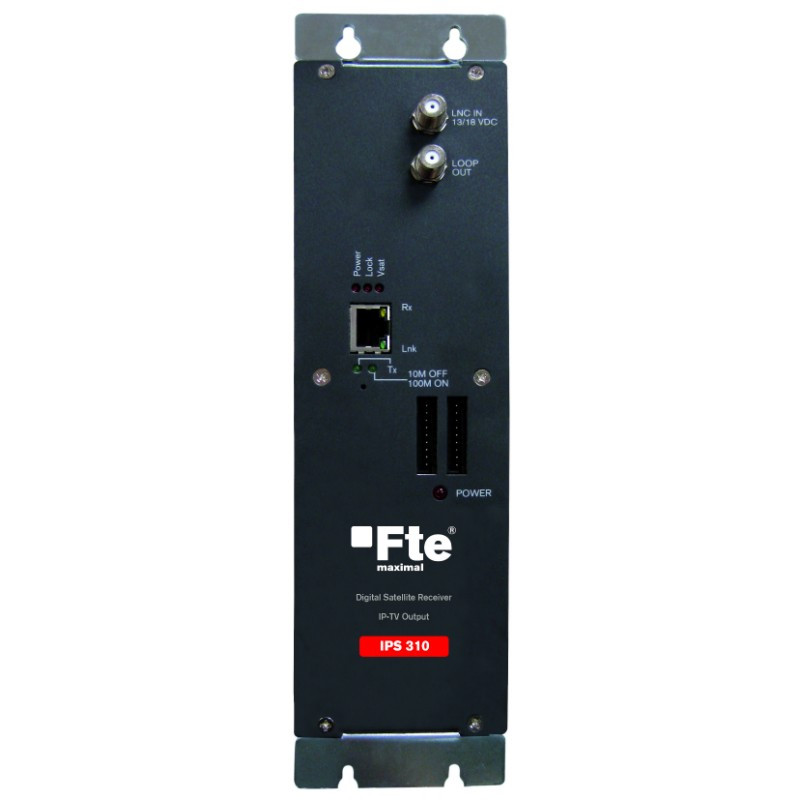

FTE IPS 310 CI IPTV

Model FTE107

Condition New

FTE IPS 310 CI DVB-S/S2 IPTV

Send to a friend

Send to a friend

FTE IPS 310 CI IPTV

FTE IPS 310 CI DVB-S/S2 IPTV

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

Data sheet

Dimenzije	75 x 265 x 150 mm
Masa	1.3 kg

More info

Specifikacije proizvođača:

- DVB-S / DVB-S2 (CI) --> IPTV
- Frekvencijski raspon (MHz)- 950-2150
- Ulazna razina (dBm): -25 do -65
- LNC napajanje: 13V/18V, 0-22kHz
- RF konektori: F ženski
- Tip demodulacije: QPSK / 8-PSK
- DVB-S:1-45 MS/s
- DVB-S2:1-36(QPSK)/1-30(8PSK) MS/s
- FEC: DVB-S:1/2, 2/3, 3/4, 5/6, 6/7, 7/8
DVB-S2:1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
- Gubitak zavojnice (dB): < 1
- Ethernet 802.3 RJ-45
- Protokol informacie usluga: SAP / SDP
- IGMP protokol: V1, V2
- Filteri programa: do 8
- IP preko MPEG 2 TS (ETSI EN 301 192)
- Programiranje: PC / IPLAN TV MANAGER
- Common interface: 2 CI modula
